Cont’d from Part 1…

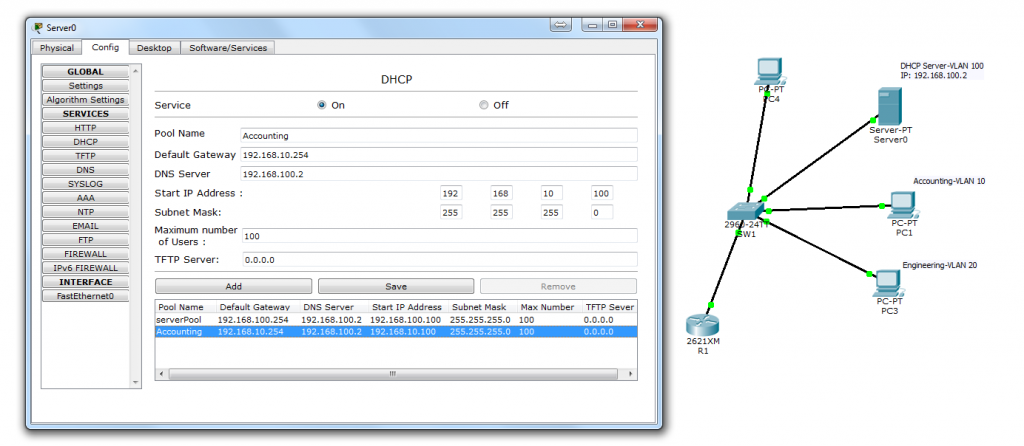

Now let’s test other VLANs to see if computers can obtain an IP address from the server or not. This time I add another scope for Accounting VLAN (VLAN10) to the DHCP scopes and set PC1’s IP configuration to automatic in Accounting VLAN. The result is shown below in Figure. 6.
Figure. 6
Figure. 7

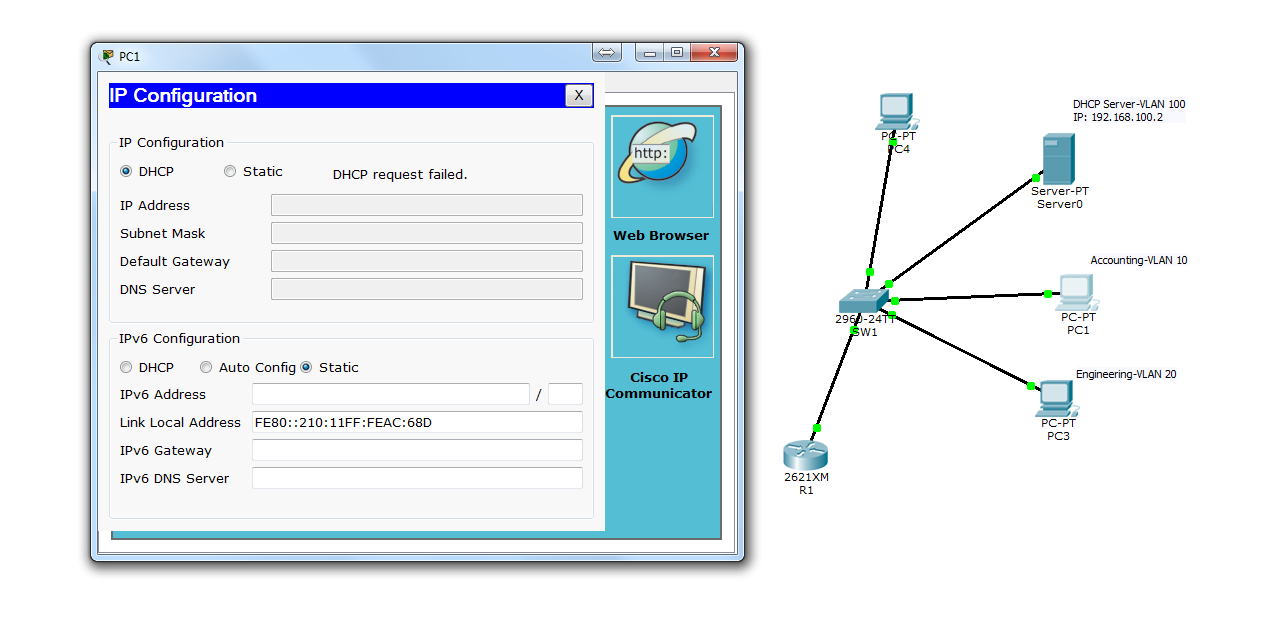

As you can see in Figure.7, the DHCP request has failed because PC1 cannot access any DHCP server (in our case, Server0).
What should we do to give PC1 access to the Server0’s DHCP service?
The solution is very easy. You just need to add ip helper-address 192.168.100.2 command to R1’s configuration. With this command we tell the router (R1) to relay the IP request to the server in another VLAN [VLAN 100 (Server VLAN)].
R1>en
R1#config t
R1(config)#interface fastEthernet 0/0.10
R1(config-subif)#ip helper-address 192.168.100.2
R1(config-subif)#exit
R1(config)#

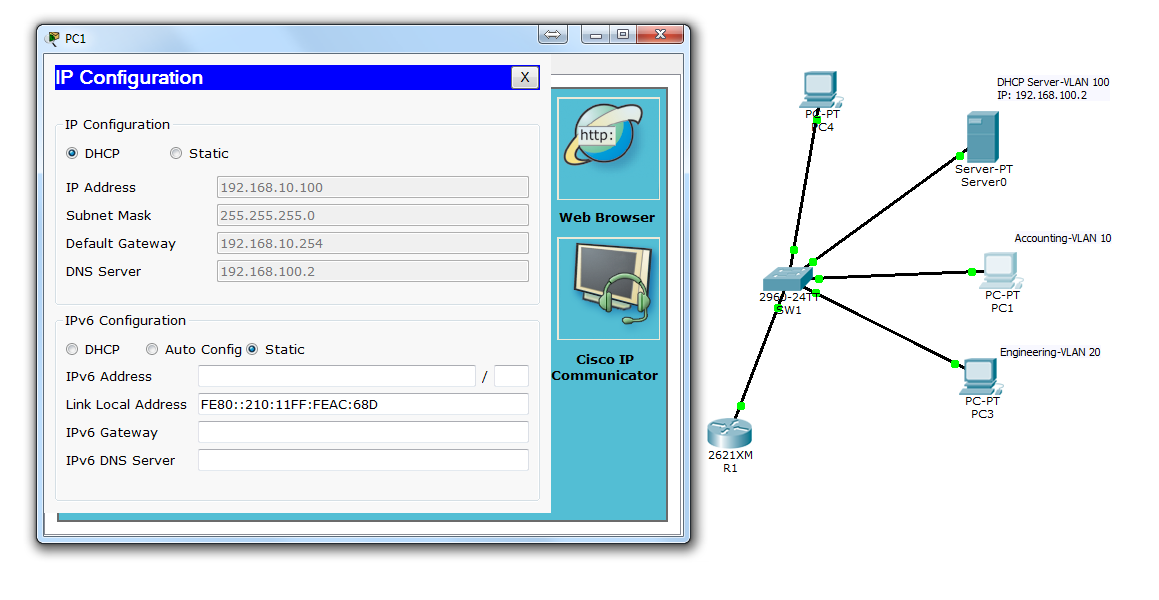

The result of the configuration is shown below in Figure. 8.
Figure. 8
We must add the ip helper-address command to the other VLAN’s virtual interfaces on the R1 router. Performing this step, relays the DHCP requests to other PCs in the corresponding VLAN in segment A.

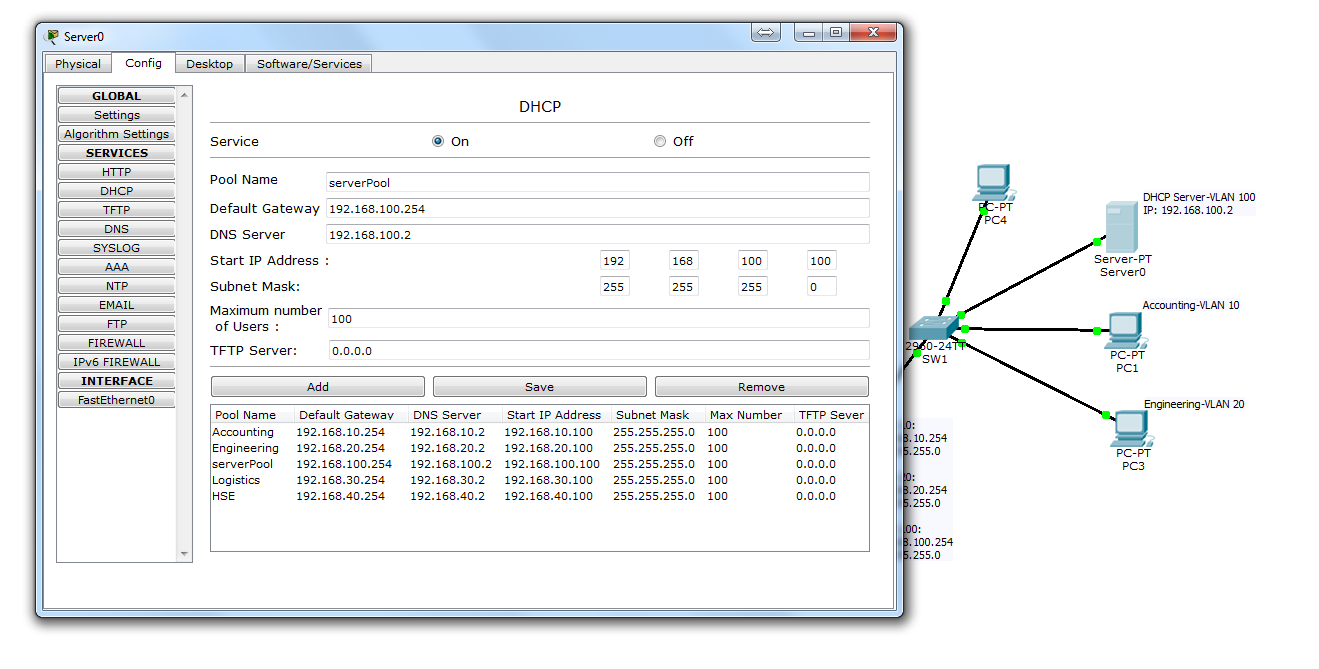

Add other VLANs DHCP scopes to the Server0 as depicted in the following picture.
Figure. 9
Now you can configure the Segment B switch yourself. Just add 2 other VLANs to the switch and name them VLAN 30 (HSE) and VLAN 40 (Logistics). Configure ROAS on R2 and test the configuration to make sure that it is working correctly.
Implementing OSPF for connecting 2 segments:
First we must assign the serial 0/0’s IP addresses to both R1 and R2 routers. Issue the below commands to assign the IP addresses.
R1 Configuration:
R1>en
R1#config t
R1#interface serial 0/0
R1(config-if)#ip address 192.168.1.254 255.255.255.0
R1(config-if)#no shutdown
R2 Configuration:
R2>en
R2#config t
R2(config)#interface serial 0/0
R2(config-if)#ip address 192.168.1.253 255.255.255.0
R2(config-if)#no shutdown
R2(config-if)#clock rate 4000000
R2(config-if)#exit
(Set Clock Rate on DCE interface. In this demonstration R2’s Serial 0/0 is DCE.)
R1’s OSPF configuration:
R1>en
R1#config t
R1(config)#router ospf 1
R1(config-router)#router-id 1.1.1.1
R1(config-router)#network 192.168.0.0 0.0.255.255 area 0
R1(config-router)#
00:51:07: %OSPF-5-ADJCHG: Process 1, Nbr 2.2.2.2 on Serial0/0 from LOADING to FULL, Loading Done
R1(config-router)#exit
R1(config)#exit
R2’s OSPF configuration:
R2>en
R2#config t
R2(config)#router ospf 1
R2(config-router)#router-id 2.2.2.2
R2(config-router)#network 192.168.0.0 0.0.255.255 area 0
R2(config-router)#exit
R2(config)#exit

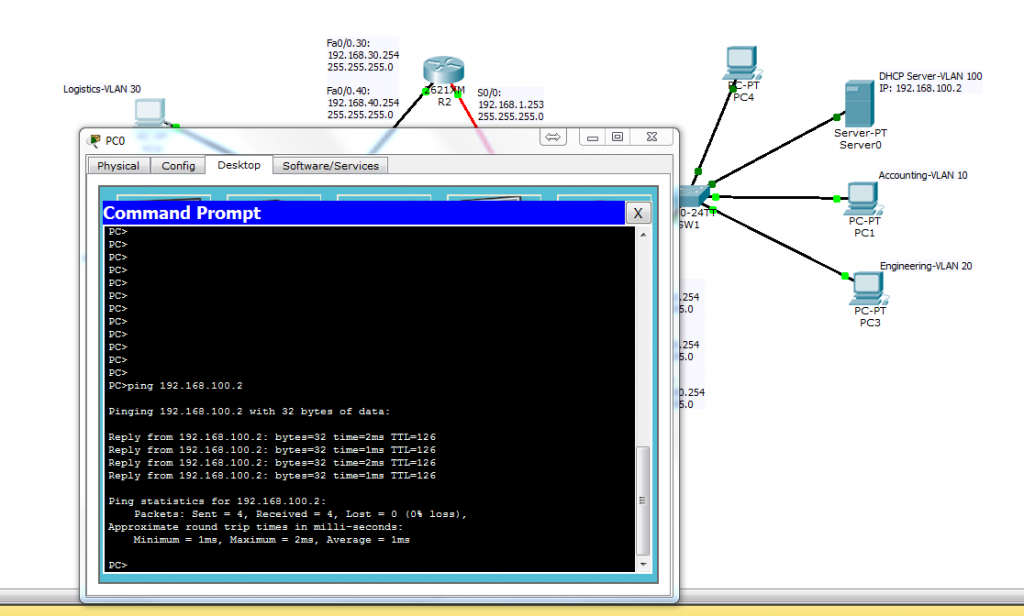

Now both segments are set up and functional. To test the connection between the computers you need to issue the ping command. You can see the result of pinging the server in Figure.10.
Figure. 10
To enable the clients in segment B to obtain an IP address automatically, we need to add ip helper-address command to the R2 configuration on both virtual interfaces. Enter in the following commands:
R2’s OSPF configuration:
R2>en
R2#config t
R2(config)#interface fastEthernet 0/0.30
R2(config-subif)#ip helper-address 192.168.100.2
R2(config-subif)#exit
R2(config)#interface fastEthernet 0/0.40
R2(config-subif)#ip helper-address 192.168.100.2
R2(config-subif)#exit
R2(config)#
Now all computers on segment B should be able to obtain an IP address from the DHCP server automatically.
In this article I showed you how to configure routers to implement ROAS, OSPF and DHCP relay agent in one scenario. Hope you found it useful and informative. If you have any questions, please leave them in the comments below.
—
