Esensor Environment Monitor
This monitor will perform checking of a model EM01b environmental sensor manufactured by ESensors, Inc. (http://www.eesensors.com).
Please note that you must use the web configuration screen that is built into the EM01b in order to configure it for use on your network. PA Server Monitor does not support a way to configure the EM01b itself.
In order to monitor the EM01b sensor, you must first create a computer object in PA Server Monitor and you must assign its address to the address being used by the EM01b sensor on your network. This will represent the EM01b for monitoring by PA Server Monitor. Refer to the page on Adding Computers. You must set the address or assigned network name of the EM01b to the "Name" value in the "Add New Computer" dialog.

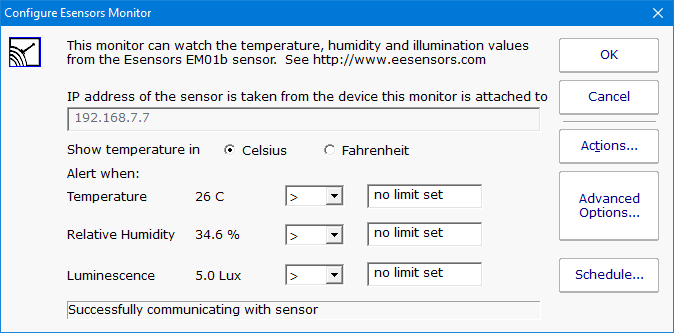

Next, you can add a monitor of type "Esensor EM01b Monitor" to that Computer entry in the Navigation Pane's list of "Servers/Devices". You will then see the dialog below.
The status line at the bottom of the dialog (which above, reads "Initializing") will indicate if there is a problem detecting the sensor.
The sensor may be monitored for any or all of following three values that it detects:
- Temperature (in celsius or fahrenheit)
- Relative Humidity (in percent)
- Luminescence (in Lux)
If any of the value(s) that you set in the dialog above are reached and crossed by the values sent back by the EM01b, this monitor will cause an error state. The error state may be reached by an "under" value or an "over" value, according to the "Alert when" setting for that sensor value.
