Citrix Monitor
The Citrix monitor is a simple "health check" of a Citrix Presentation Server. The monitor will periodically connect to and log in to the Citrix server, and will time that event. If the login fails to occur, or if it takes too long, the monitor will enter the error state.
The Citrix monitor will expect to find a Citrix server at the address of the "computer" that the monitor is attached to. Normally, a Citrix server will require its own Computer entry in the Navigation Pane's list of computers and devices and that entry will indicate the network name or IP address of the Citrix server.

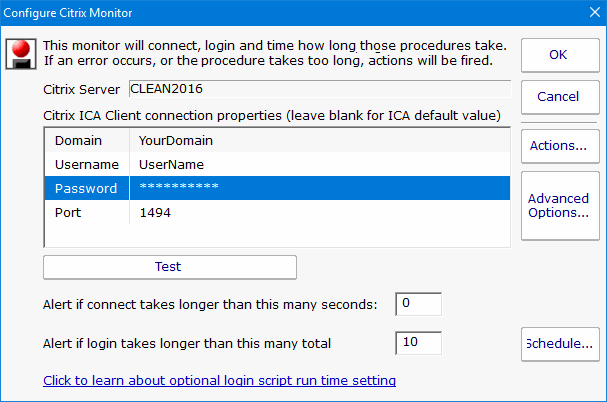

The dialog below is used to configure the Citrix Monitor.
You will need to know the domain name, the user name, and the password to be used for login and you will have to enter it into the dialog. If the Citrix server is configured for a non standard port, you will need to enter that port value, too.
The Schedule function specifies the interval at which the test of the Citrix monitor (the connection and test login sequence) will be applied.
